Product Overview

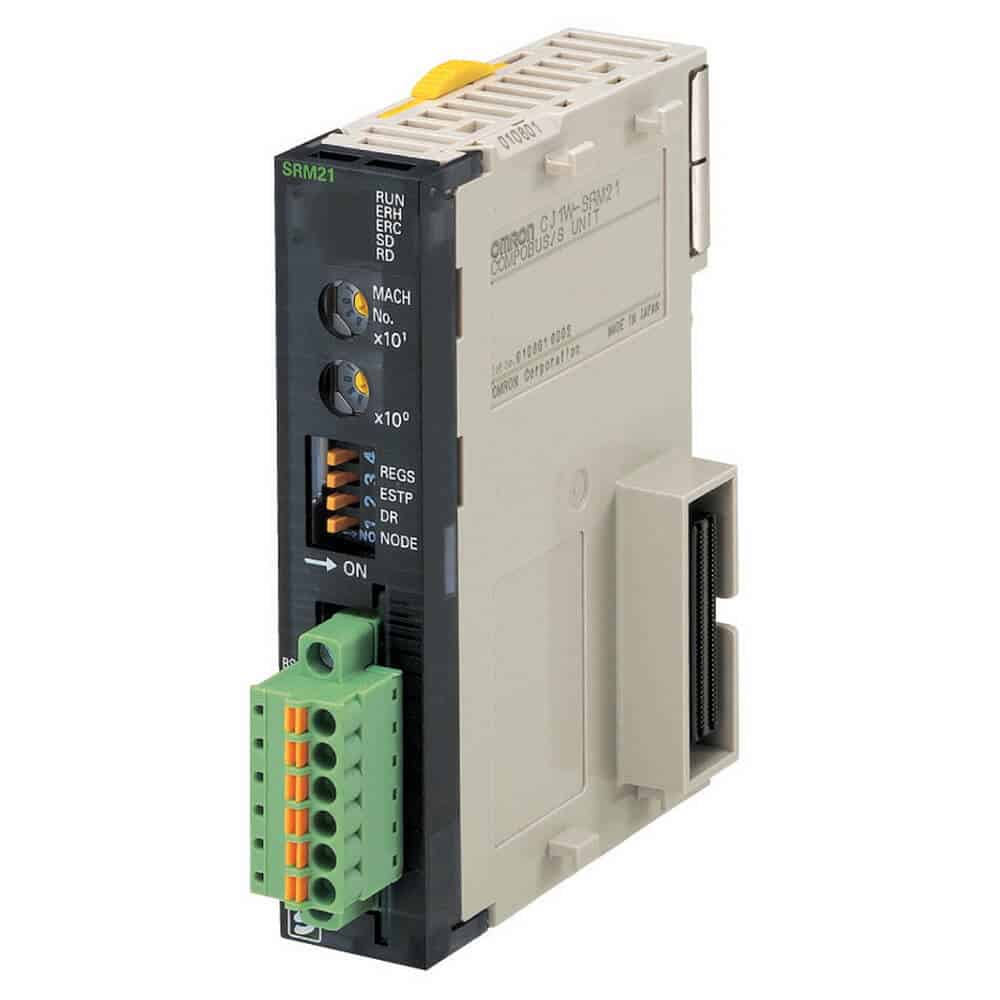

Wingate Electronic Part Number: CJ1W-SRM21 -WE
Manufacturer: Omron Automation and Safety
Manufacturer Part Number: CJ1W-SRM21
Description: Omron CompoBus/S Master Module is a high-speed I/O bus.
Lead Free status/ RoHS Status: Lead free/ RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)


SKU: CJ1W-SRM21 Categories: ,

Product Attributes

Categories Industrial Automation and Controls – PLC Module
Manufacturer Omron Automation and Safety
Series CJ1W
Part Status Active
Model CJ1W-SRM21
Type CompoBus/S Master Module
Communications method Special CompoBus/S protocol
Current consumption 150 mA (maximum) at 5V DC from PLC power supply
Communications baud rate High-speed Communications Mode: 750 kbps
Long-distance Communications Mode: 93.75 kbps
CPU Rack
No. of mountable Master Units 40
I/O points 256 (128 inputs and 128 outputs) or 128 (64 inputs and 64 outputs) (Switch-selectable)
Memory Size
Control and status ares  size
Mounting Type DIN Rail
Termination Style Spring Terminal
Maximum Input/output
Operating Temperature 0°C……+55°C
Ingress Protection IP30
Approvals CE, CSA, N, UL
