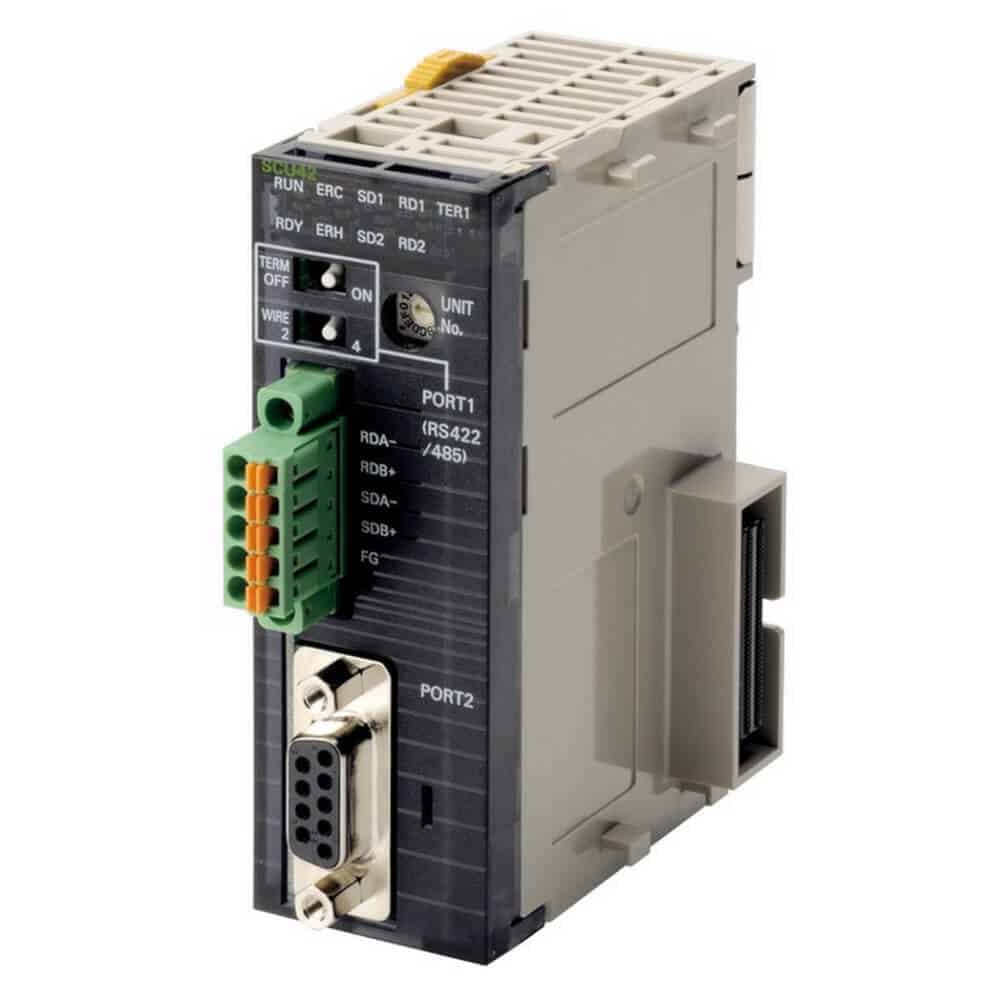

CJ1W-SCU42

Product Overview

Wingate Electronic Part Number: CJ1W-SCU42 -WE
Manufacturer: Omron Automation and Safety
Manufacturer Part Number: CJ1W-SCU42
Description: Omron Serial Communication Module.
Lead Free status/ RoHS Status: Lead free/ RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)



SKU: CJ1W-SCU42 Categories: ,

Product Attributes

Categories Industrial Automation and Controls – PLC Module
Manufacturer Omron Automation and Safety
Series CJ1W
Part Status Active
Model CJ1W-SCU42
Type Serial Communication Module (High Speed Type)
Serial ports  1 x RS-422A/485, 1 x RS-232C
Current consumption 360 mA (maximum) at 5V DC from PLC power supply
Communication Function The following functions can be
selected for each port with an CJ-system:• Protocol macro
• Host Link
• NT Links (1:N mode)
• Serial Gateway
• No-protocol *3
• Modbus-RTU SlaveThe following functions can be
selected for each port with an NJ-system:• Protocol macro
• Serial Gateway
• No-protocol
• Modbus-RTU Slave
CPU Rack 10 units
Maximum number of I/O points
Control method
Memory Size
Control and status ares  size
Mounting Type DIN Rail
Termination Style Spring Terminal, D-sub
Maximum Input/output
Features
Operating Temperature 0°C……+55°C
Ingress Protection IP30
Software SYSMAC, SYSWIN
Approvals CE, CSA, N, UL
Weight 140g
