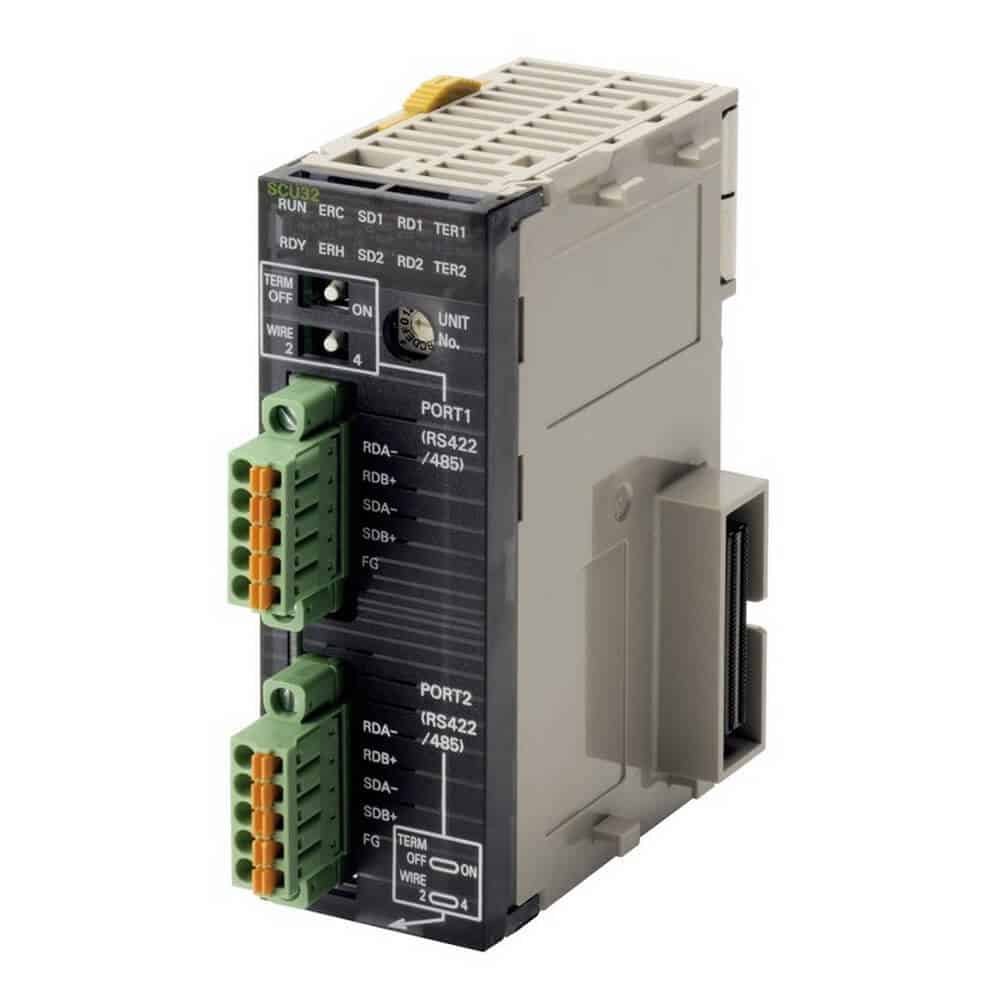

CJ1W-SCU32

Product Overview

Wingate Electronic Part Number: CJ1W-SCU32 -WE
Manufacturer: Omron Automation and Safety
Manufacturer Part Number: CJ1W-SCU32
Description: Omron Serial Communication Module.
Lead Free status/ RoHS Status: Lead free/ RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)



SKU: CJ1W-SCU32 Categories: ,

Product Attributes

Categories Industrial Automation and Controls – PLC Module
Manufacturer Omron Automation and Safety
Series CJ1W
Part Status Active
Model CJ1W-SCU32
Type Serial Communication Module (High Speed Type)
Serial ports  2 x RS-422A/485
Current consumption 400 mA (maximum) at 5V DC from PLC power supply
Communication Function The following functions can be
selected for each port with an CJ-system:• Protocol macro
• Host Link
• NT Links (1:N mode)
• Serial Gateway
• No-protocol *3
• Modbus-RTU Slave

The following functions can be
selected for each port with an NJ-system:

• Protocol macro
• Serial Gateway
• No-protocol
• Modbus-RTU Slave

CPU Rack 10 units
Maximum number of I/O points
Control method
Memory Size
Control and status ares  size
Mounting Type DIN Rail
Termination Style Spring Terminal
Maximum Input/output
Features
Operating Temperature 0°C……+55°C
Ingress Protection IP30
Software SYSMAC, SYSWIN
Approvals CE, CSA, N, UL
Weight 120g
